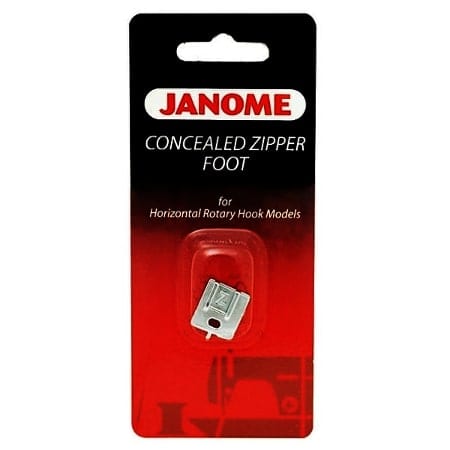

Janome Concealed Zipper Foot

or 4 payments of $7.75 with Wizit learn more

Good quality ready to wear garments will often have an invisible zip fitted. These zippers are often neglected by the home dressmaker, which is a pity because with the Concealed Zipper Foot, they can ensure success every time. Invisible zips are suitable for all fabrics from fine silk jersey through to suit weight wools and tweeds. The key is to get the needle as close to the fastener as possible, which this foot accomplishes by slightly unrolling the zipper just before the needle. Once fitted, a well sewn invisible zipper will merely look like part of the seam.

$31.00 $35.00

Janome Concealed Zipper Foot

for 7mm Sewing Machine Models

Part Number: 200 333 001

Janome Concealed Zipper FootThe Janome Concealed Zipper Foot fits the following sewing machines:

Janome 5mm: 1008, RE1306, RE1706, 1008, JR1012, SP1221, Sewist 509, Sewist 521, JP720, JP760, FD206, FD216, DC1030, DC2030,

Janome 7mm: 6019QC, 6025QC, 6260QC, CS995, DC2050, DC2150, DC2101, DC2101LE, DC2200, DC3018, DC3050, DC3100, DC3200, DC4030, DC6030, DC6050, DC6100, DC7060, DC7100, DM7200, 2160DC, 3160QDC, 4120QDC, 4300QDC, MC3000, MC3500, MC4000, MC4800, MC4800QC, MC4900QC, MC5200, MC5500, MC5700, MC6000, MC6500P, MS5027LE, MW3018 (My Excel 18W), MW3018LE, Sewist 625E, 4618, 4618QC, 5018, 5024, 5027, 5124, ME4014, ME4015, ME4018, ME4123, MS2028, MS2522 , MX3123, SD2014, SR2000, SS2015, SW2018, 995CS, Skyline S3

Elna 5mm: EL1000, EL2000, Sewfun, Elina 21, Explore 240

Elna 7mm: 3230, 320, ELJ3210 (Easy Jeans), Lotus (Computerised), 520, 540, 660, 720, 740, 8600, 9600


How do I use the Janome Concealed Zipper foot:

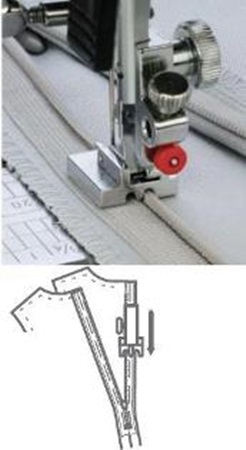

Janome concealed zipper foot in use

Sewing Machine settings:

Stitch: Straight stitch (Center needle position)

Thread tension: “Auto” or 3 – 5

Stitch length: 1.5 – 2

Stitch width: 0



  1. Baste along the zipper opening. Prepare a concealed zipper 2 cm longer than the actual opening size.
  2. Baste the zipper tape on the garment before machine stitching.
  3. Pull out the center basting threads and open the concealed zipper. Sew the right and left sides of the zipper to the ends of the zipper opening by using the concealed zipper foot.
